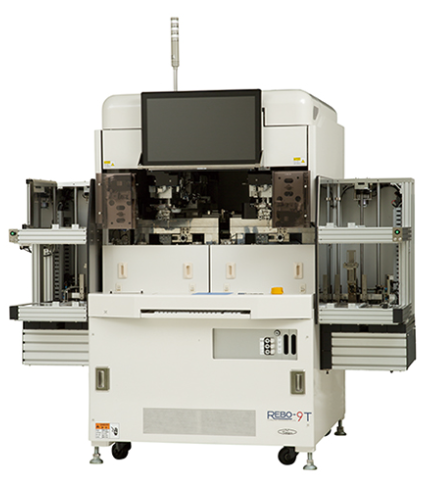

Ultrasonic Rotary Head Bonder REBO-9T
Characteristics
• Bonder Exchange Kit enables REBO-9 to handle large, medium, small wire and ribbon . This enables customers to save manufacturing cost.
• New Dual frequency transducer is available for large wire bonding head. By switching between 110 kHz and 40 kHz arbitrarily, It enables optimum bonding on corresponding bond point.
• Able to manage 80、110、120kHz in 1 generator.
• Able to recognize multiple points at once,it reduce time for PRS and improves Productivity.(optional)
• Automatically measure and saves deformation data after bonding.
• It would greatly reduce pattern recognition errors.
• Bonder Exchange Kit enables REBO-9 to handle large, medium, small wire and ribbon . This enables customers to save manufacturing cost.
• New Dual frequency transducer is available for large wire bonding head. By switching between 110 kHz and 40 kHz arbitrarily, It enables optimum bonding on corresponding bond point.
• Able to manage 80、110、120kHz in 1 generator.
• Able to recognize multiple points at once,it reduce time for PRS and improves Productivity.(optional)
• Automatically measure and saves deformation data after bonding.
• It would greatly reduce pattern recognition errors.
